Photos and drawings

This blind is completely sealed!  This is not a cheap open blind that only provides limited visibility camoflage.  This blind will provide excellent sound, scent and visibility cover.

Blind has base dimensions of 6 ft x 6ft to allow hunters enough room to shoot without sticking the your weapon out the window in order to take the shot.  This allows the hunter to move into position, and not open th

Blind is 7 ft tall inside providing plenty of room to stretch and move around.  Small plexiglass peep windows are provided, so hunter can continue to hunt while standing without crouching over.

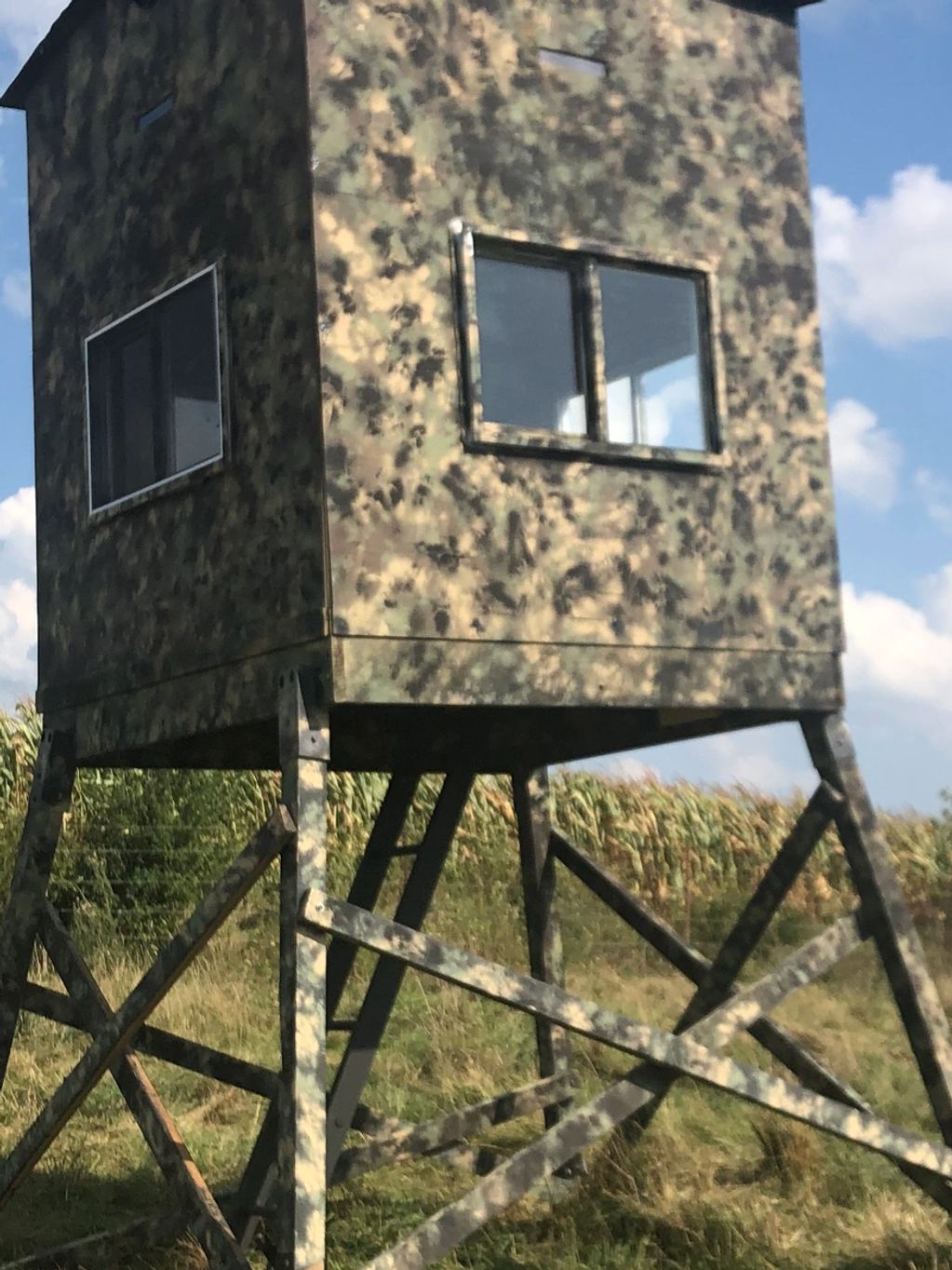

Windows are PVC; 36" x 24" single sliding utility windows (four).  They provide excellent visibility, thermal resistance as well as quiet operation.  Windows are 19" off of the floor for tripod or crossbow s

Blind utilizes a trap door and ladder that significantly reduces cost over an elaborate stair system.

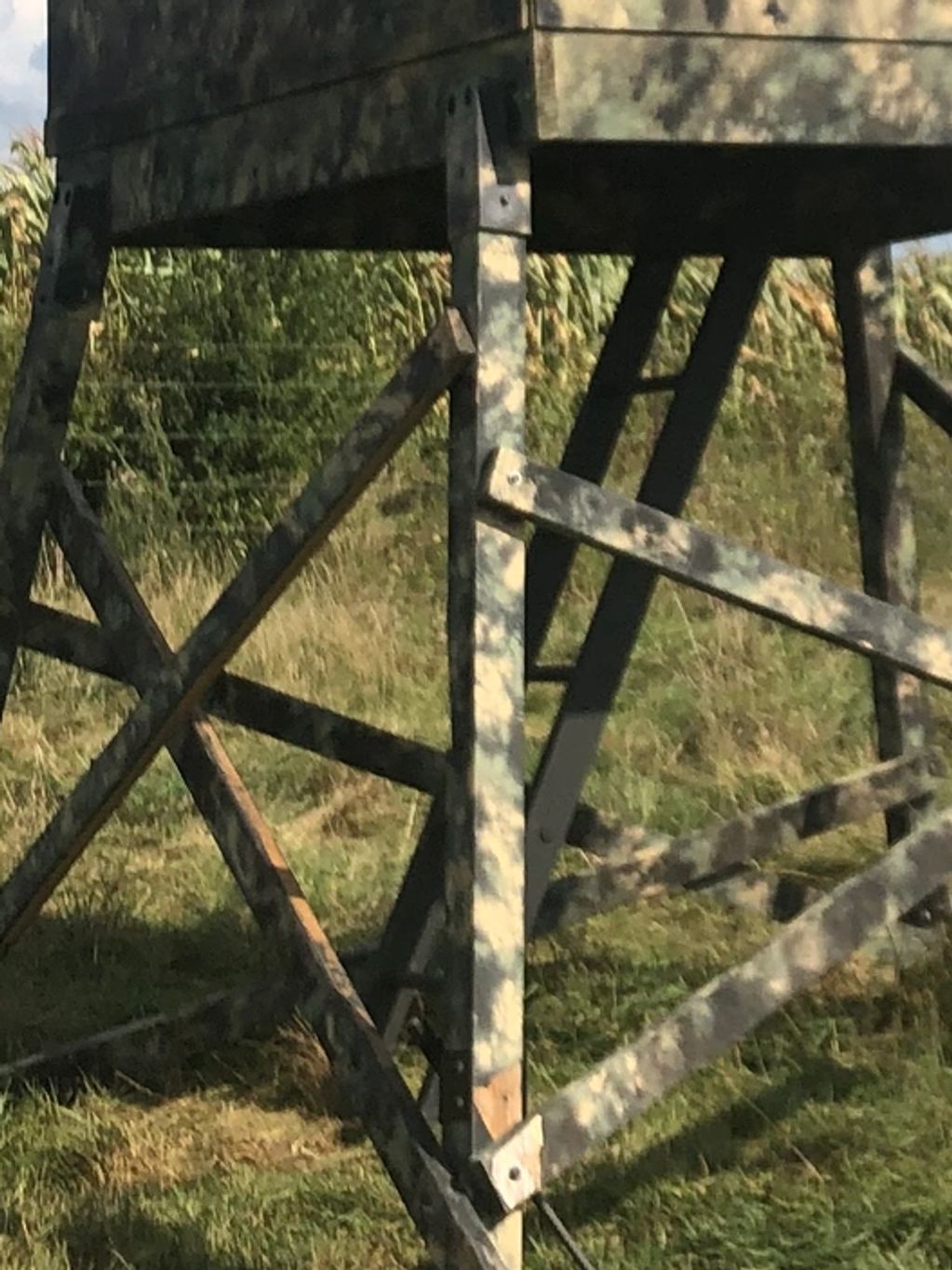

Steel "Elevators" provide excellent support of the 4x4 legs, as well as steel anchors that grounds your blind with 5/8" steel rebar.

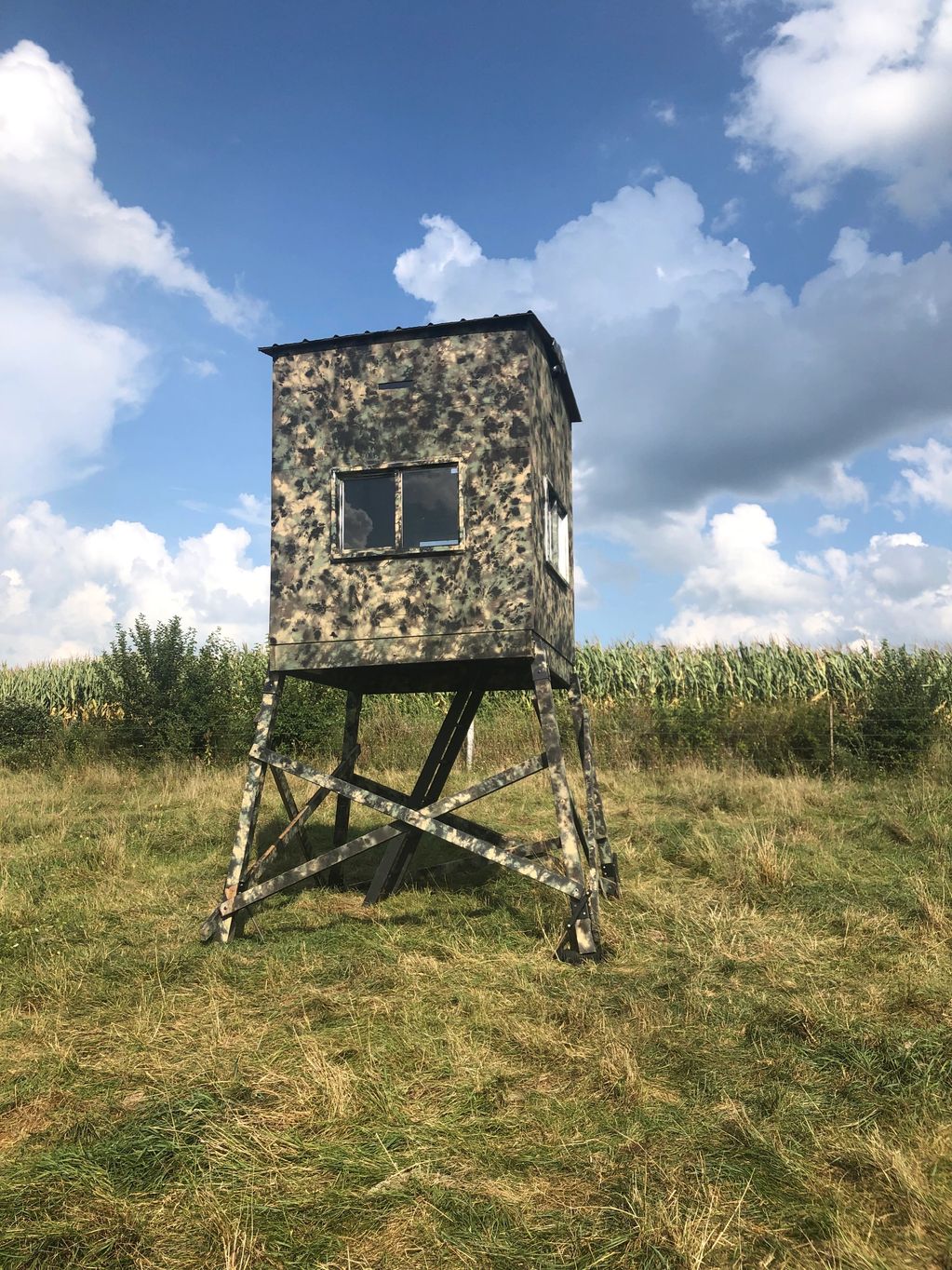

Included Bill of Material has legs that are 12 ft long for a 10 ft high base.  Pictures show a 6 ft high version.

Final assembly drawing provided with set.  Notice the house quality steel roof.  The roof will not leak prematurely like most DIY designs, and it will keep water off the windows with a proper eaves.

Base assembly drawing shows 6ft x 6ft base that the entire blind structure is based around.  The  base structure is built on 2x10 Ground Contact AC2 wood.  The walls overlap the base and are screwed to the base all the way around the permitter.

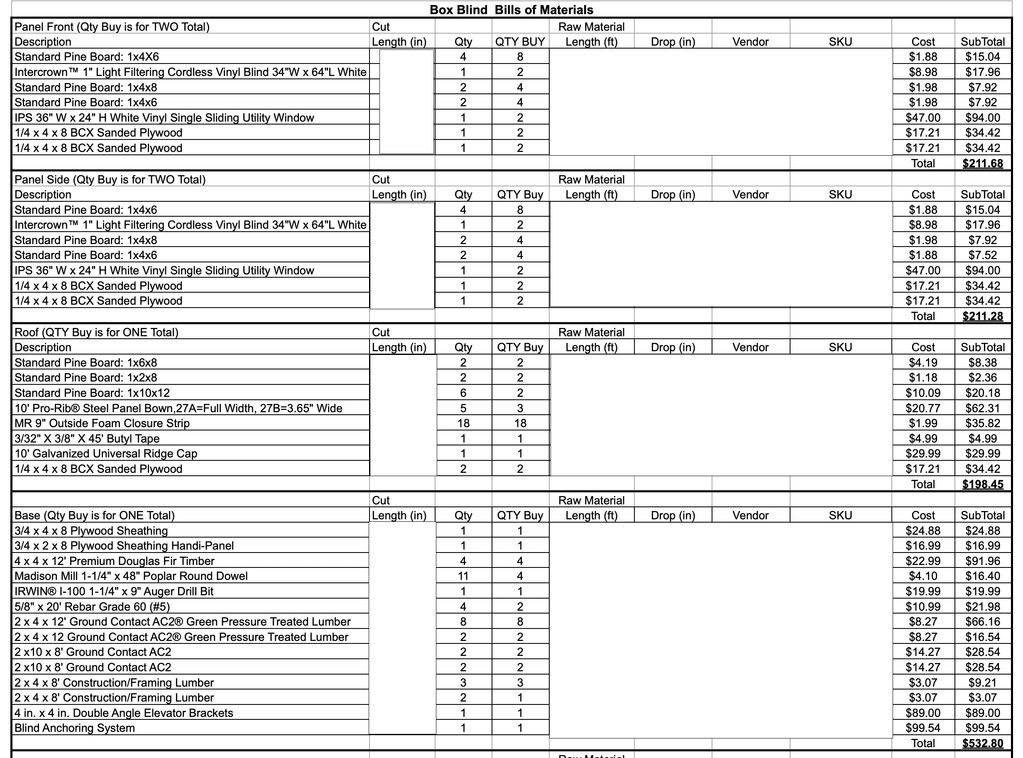

Spreadsheet provides a complete build list associated cut lengths, vendor name,  vendor part number, and vendor cost.

BOM includes:

Wall construction lumber

roofing materials (steel)

hardware

4x4 elevators

anchoring system

windows

window blinds

carpeting (floors and walls)

Base paint (not camouflage)

Specialty tools like drills, sledge hammers, et al.

Total estimated cost is $1500.  Compare that to the $4,000
